Welcome to "The!Cart Studio", the free cartridge image authoring tool for
Atarimax Maxflash Cartridges
and free-style binary cartridge images. The program enables you to create workbooks for cartridge images which contain one or
more ROMs or executables. The workbook an then be exported in different formats. Besides plain binary images for usage if an
EPROM or external flash programming device, emulator cartridge images to run the cartridge in emulators and flash programming
disk images which can be booted or loaded directly from the Atari to flash the target flash module. You need a device and
software that is capable of transferring the data from your PC to the Atari like for example SIO2PC (available
. For "The!Cart", you do not need a USB programmer device or other PC related hardware for programming. Because "The!Cart
Studio"" can also create plain binary export files for a workbook, you can of course also use an USB programmer device to
burn or flash them into any kind of cartridge supported by the device.
You can watch the
youtube video presentation
get an idea how it works and looks like. To really learn about the details and features you should carefully read this
English manual. The
is under construction and will provided completely once the English manual is complete. If you have question regarding
"The!Cart" or "The!Cart Studio", you can contact me directly or post in the "The!Cart" thread on
or in the
ABBUC Forum (German)
This is version 2017-02-23 02:45:58
of the program. Click
to download the latest version of the program. The download is a single ".zip" archive file which contains the actual program
plus additional operating system specific wrapper files. Simply extract the files from the archive into a folder of your
"The!Cart Studio" is implemented in Java which makes is compatible with all popular operating systems. In order to run the
program you need has Java Runtime Environment (JRE) or Java Development Kit (JDK/SDK) with version 1.6 or newer versions
installed. Using Java 1.7 is recommended because on the one hand Java 1.6 is out of maintenance and on the other hand,
multi-selection in the file selection dialog will only work with JDK 1.7 or newer versions. "The!Cart Studio" requires enough
RAM available for the Java process to be able to export images. The amount of available RAM is display in the "About" dialog.
It should be twice the size of the cartridge you want to export. So for a 128 MB "The!Cart" export, the program requires at
least 256 MB. You can specify this when you start from the command line via "java -Xmx256M -jar TheCartStudio.jar". By
default "The!Cart Studio" check if an update is available during the start. The check is performed in the background and has
no impact on the startup time. You can disable this check in the options.
Double-click "TheCartStudio.exe" to start the program. The "TheCartStudio.jar" file with the actual program must be
present in the same folder. Alternatively you can run the program also from the command prompt ("cmd.exe"). In this case you
can change the current path to the folder where "TheCartStudio.jar" is located and type "java.exe -jar TheCartStudio.jar" to
start the graphical user internal. Alternatively the following parameters are supported when running from the command line.
After extracting the "TheCartStudio.sh" and the "TheCartStudio.jar" file from the download archive, the so called
"executable bit" is not set, resulting in the following error message when you double-click on of the files.
Open the file properties, set the executable flag as shown below for both files. The installation of the Java runtime
normally registers itself as the default application for the file extension ".jar". So by simply double-clicking the
"TheCartStudio.jar" file or by choosing "Open" from the context menu, the program should start. If that is not the case or if
you get error messages reporting that there is not enough memory reserved for Java, you can double-lick the
Please note that there is a
known bug in Ubuntu
, for example 12.10 with openjdk7. It is tracked as "Unreadable menu bar with Ambiance theme in Java/Swing GTK L&F" and
causes the menu to appear too dark; making is barely readable with the standard desktop theme. Changing the desktop theme
This is currently procedure same as for Linux, except that Java 1.6 is available by default in Mac OS X 10.9 "Mavericks".
The amount of memory available to Java by default appears to be 128 MB. Consequently it is mandatory to start "The!Cart
Studio" using "TheCartStudio.sh" to reserve enough RAM for exporting a 128 MB cartridge. A first native app version

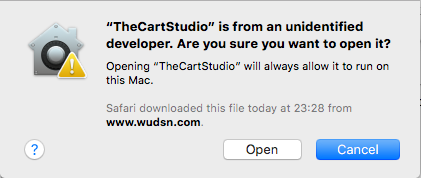

"TheCartStudio.app" is also included in the download. Currently it is completely untested as I do not have a Mac OS X machine
and so will probably not work yet.
The "The!Cart" enables you to create workbooks for cartridge images which contain one or more ROMs or executables. The
workbook an then be exported in different formats. Besides plain binary images (".BIN", ".ROM") for usage if an EPROM or
external flash programming device, emulator cartridge images (".CAR") to run the cartridge in emulators and flash programming
images (".ATR") which can be booted or loaded directly from the Atari to flash the target flash module. Depending on the disk
emulation you are using, you can export the workbook a single large programming disk image for use with
or as multiple 16 MB sized programming disk images for use with
or similar SIO device emulators. You can also export cartridge images in plain binary (".BIN") to burn or flash them to any
kind of cartridge using a programmer device.
In case you are creating workbooks for "The!Cart", you can make use of the native cartridge emulation feature and reuse the
existing software for "Atari Maxflash Cardridges" and "MegaCart cartridges". This means you can one the one hand directly use
existing compilations and just add them as a single file. On the other hand you can use
to create new compilations and images for these cartridges and then add them as a single file. Because the
of "The!Cart" also recognizes the menu systems of these two cartridge systems, it can optionally offer you the entries within
these menus directly.
Using the different studios with their specific loaders can be useful in particular when adding ATR disk images. It is in the
nature or ROM cartridges that no 100% emulation of standard disk handling is possible. Any kind of ATR emulation must use at
least a little amount of the computer's RAM. And if a certain program uses this RAM area while loading from the cartridge,
the loader will be overwritten and crash. The details on the different methods used can be found in the section
ATR Disk Images
. The following table given an overview of the features supported by the individual loaders. With this information you can
decide which loader might be the right one for you.
||Compatible with Programs using the RAM under the OS
||Supports Disk Swapping
||Supports Poke and Patches
||Modified Atari OS in RAM
||Modified Atari OS in RAM
||Modified ATR Image
The user interface of "The!Cart Studio" is localized and current comes with English and German screen texts. You can
change the display language via the menu entry "Tools/Options...". The default value is "Automatic", which means that the
language is determined automatically based on the language settings of the operating system.
By default, only the most frequently used columns are display in the various tables. You drag & drop to change the
order of the columns. Clicking on column header with SHIFT or CONTROL held down extends the sort order by appending this
column. This way you can sort by genre first and then by title for example. Clicking a column header without pressing SHIFT
or CONTROL resets the sort order to that single column. You can also use the context menu to hide visible columns, unhide
invisible columns and reset visibility and sort order to the default. All layout changes are saved automatically when the
program is closed. This also applies to the size and the position of the main window and to the different folders that were
last used for loading/saving workbooks, adding entries and exporting cartridge images.
All relevant commands also have a key binding, so you can use your keyboard to fully control the program.
In the "File" menu you can find the usual "New", "Open", Save", "Save As" and "Close" actions. When "The!Cart Studio" is
opened, a new unnamed project is already prepared. You can display the dialog to edit the workbook options via the menu entry
You can add files for new entries via the menu entry "Edit/Add Entries...". The file chooser has multi-selection enabled,
that means you can select multiple files at once and add them in go. Alternatively you can use drag & drop to drop one or
multiple files onto the window to add entries.
"The!Cart Studio" contains a database of popular ROMs and will assign the correct title automatically based on size and
the CRC32 checksum of the file. If no matching entry is found in the data, the title of the entry is defaulted from the file
name by removing the file extension.
When new files are added, they remain at their original location first. When you save the workbook, all newly added files
will be copied into the data folder (".tcd") of the workbook. This way you have all files and the workbook together in one
location. As a consequence,
a file in the workbook is uniquely identified by its case-insensitive file name, irrespective of the folder it was
originally copied from.
Adding files with the same file name will result in a confirmation dialog where you can choose to overwrite the existing file
in the data folder with the new file, rename the file automatically during copying or to skip the new file, leaving the
existing file in the data folder unchanged. The choice can either be applied to the current file only or to the current file
and all following files.
The information for every entry is displayed in the columns of table on the "Entries" tab". Only the most important columns
are visible by default. They are show with bold names on the table. You can configure the visibility and order of the columns
as described in the section
. Columns listed as editable can be read-only for certain entries depending on the type of the entry or other conditions.
||The line number in the table.
The type of the entry. Possible values are:
This entry was added via the standard "Add Entries..." action by selecting a file that is now part of the workbook. The
entry and content of the file will be exported when the workbook is exported.
This entry was added via the "Add User Space Entry..." action by selecting a file that is now part of the workbook. User
space entries can only be added if user space is reserved in the workbook options. A user space entry is exported as menu
entry only and points to a bank in the User Space that is not maintained from from "The!Cart Studio".
||The title of the entry in the extended menu. It must be specified and should unique within the workbook because it is
the basis for the search in the extended menu. The length of the title is limited to 40 characters and to characters that
actually exist in the Atari's character set. The title is defaulted when the entry is added based on built-in the cartridge
database. If no entry can be found in the database, the title is defaulted based on the name of the newly added file.
||The genre of the entry. Genres like "Games", "Demos" or "Tools" can be defined in the workbook options. Every entry can
optionally be assigned to a genre. There are three way to do this. First by typing in the name of the genre with the
keyboard. Second by choosing the genre from the drop down list of the field. Third by the action "Set Genre..." in the
"Edit" menu. Using the "Set Genre..." action, you can set or clear the genre for all selected entries at once. If an entry
not assigned to a genre, is will only be present on the "All" tab of the extended menu. If a type is assigned to a genre,
it will be present on the "All" tab and on the tab for the genere.
||The favorite indicator is currently not used by the extended menu. It is planned to be used as additional filter in the
future. The idea is that if you set the favorite indicator for an entry, the initial list of entries in the extended menu
only shows the favorites. This way you can use the joystick or cursor key to select from restricted list of entries. As
soon as you start typing a search term, the favorite indicator become irrelevant and all entries are searched.
||The source file path for newly added and not yet saved entries. Once the workbook is saved, the file will be copied from
the source file path into the data folder of the wookbook and the file path will be cleared.
||The file name of the entry that uniquely identifies the entry within the wookbook and the data folder of the workbook.
||The exact file size of the file in bytes.
The file header type of the file. Possible values are:
The file does not have a specific file header that describes its content. The complete file content is considered as
relevant data for "The!Cart". You have to select the proper content type manually.
The file is a ".car" file that contains an additional header that describes is content. Only the part of the file after
the header is considered as relevant for "The!Cart". The content type of the entry is set automatically and cannot be
||The size of the relevant content in the file. For files with header type "None", it is equal to the file size. For files
with another header type, it is the file size minus the size of the header.
||The CRC32 checksum of the content. This checksum is used as identification to find information in the cartridge
database. You will sometime also find this checksum when people try to identify which ROM or version of a ROM they have.
||The content type of the entry. The content type controls how "The!Cart" and the extended menu interpret the binary
content behind the entry. To start an entry correctly, the correct content type must be set. If you add entries with a
"Cartridge" file header, the content type is determined automatically and cannot be changed manually. If you add a plain
binary file, "The!Cart Studio" will default the content type is possible based on the size of the file. If there is more
than one content type that matches the file size, you have to select the correct one from the drop down list of the field.
You can see the available content types and the associated file size in the "Content Types Overview" dialog. The dialog can
be opened via the "Help/Content Types" menu.
The display mode for the entry. Possible values are:
The entry is represented as single entry in the extended menu. The entry title in the workbook is used as entry title in
the extended menu.
This value can only be selected if the file behind the entry contains an own menu that is supported by "The!Cart Studio".
The inner menu entries are extracted from the file during the export of the workbook. Only the titles of the inner menu
entry, but not the title of the workbook entry, will appear in the extended menu.
The parameters are relevant for entries with content type "ATR - Atari Disk Images". They contain the information required
for modify the disk image content, so it can run from "The!Cart" instead of running from a disk drive. When you add a entry
based on a disk image, the default parameters are automatically determined by "The!Cart Studio". You can change them
manually in case the disk images does not work correctly with the defaults. To restore the defaults, add the disk image
file again. For more information on the parameters see
File Format and Content Type
|Start Bank Fixed
||By default "The!Cart Studio" arranges the data for the entries of a workbook automatically. This is done based on a
strategy that keeps the position of existing entries stable as long as there is enough free space. Together with the
incremental flashing feature of the flashing software, this helps keeping the time require for updating "The!Cart" short.
If you are a developer that creates software specifically for "The!Cart" or you even create other arbitrary binary exports
with "The!Cart Studio", you may want to have control of the order and position of the entry data in the export. By setting
the "Start Bank Fixed" checkbox, the corresponding field in the "Start Bank" becomes editable. "The!Cart Studio" will then
used the specified start bank for the entry and will not rearrange the entry is space on the cartridge runs out.
||The bank where the content for the entry is located. By default the start bank is determined and managed automatically
by The!Cart. By setting the "Start Bank Fixed" checkbox, you make make this field editable and specify a fixed value
||The number of banks the entry will occupy on the cartridge.
||This checkbox indicates the required banks for the entry could be assigned correctly. If there is not enough continuous
space for the banks of the entry left on the cartridge, the "Banks Asigned" checkbox will not be set. Saving the workbook
is possible in this case, but exporting the workbook is disabled. You can use the menu "Edit/Reassign Banks" to trigger a
reordering of all entries to minimize gaps and free more space.
Several file formats are supported when adding entries. In order to properly handle the ROM specific bank switching
scheme, every entry must know its content type. For those file formats where the content type cannot be determined
automatically, for example because there are multiple possible options, you have to select it in the "Content Type" column.
The value help in the "Content Type" column is automatically filtered based on the file length and content. So it only offers
the potentially matching content types. In additional some file formats even automatically converted before they are added to
the workbook. Saving the workbook is possible at any time, even if there are entries with unknown content type. Only when the
workbook is exported, the content type for all entries must be present. Here is a description of the supported file formats
and their handling.
|CAR Cartridge Image
||This is the recommended format to add ROM files. It is also by emulators. It contains a header with the exact type of
the ROM file and a check sum to verify its integrity. This enables emulators to run the file without prompting the user for
the exact content type upon each start. Similarly it enables "The!Cart Studio" to automatically determine the content type,
so you don't have to choose something and the content type is not editable in this case.
BIN Cartridge Image
ROM Cartridge Image
|This is the regular dump format for ROM file. It does no contain any information on the type of flash module was dumped
from and the require bank switching to run it. Based on the size of the file, the "Content Type" column is restricted to
those values that represent ROM of with the exact size of the file. For example a file with exactly 1 MB of data could be
"Atarimax 1MB", "Mega Cart 1MB", "XEGS 1MB" or "Switchable XEGS 1MB". If you want to use your ROM files also in an
emulator, it is advisable to convert the plain ROM file into a .CAR" files. All popular emulators have this function built
in. This way you don't have to choose the correct flash module type on every start.
|ATR Programming Images
Collections created with the
are sometimes available as "ATR Programming Images" instead of "BIN" or "ROM" cartridge images. They are bootable disk
images which contain the program to flash the "Maxflash" cartridge directly from the Atari. They cannot be run or tested in
an emulator. These programming images are recognized by "The!Cart Studio". When you add such a file as entry, it is first
converted into a "CAR" cartridge image which is saved in the folder of the programming image. In case the ".car" file
already exists in that folder, it will be overwritten. The new ".car" file is added to the workbook. This way you can even
run and test the content of the "CAR" image in an emulator before flashing.
ATR Disk Images
This is the standard Atari disk image format used in emulators. Many disk based programs that are available in this format
can also be started from flash cartridges. But there are some natural limitations arising from the fact that loading the
ATR images requires a simulation of the SIO routines that are located in ROM of the original Atari OS. For example the code
for the simulation must be located in the RAM and may be overwritten when the loading from the ATR image starts. In
addition the banks of the flash cartridge have to be activated during the SIO operation to load the data of the ATR image.
As a consequence a program that uses a display list, graphics or interrupts in the cartridge memory area will run into
problems. Also programs that try to write data to the disk will fail when run from an ATR simulation. For the simulation
itself two approaches are used,
Modified ATR Images
Modified Atari OS in RAM
. It depends on the individual ATR file and its programs which of them will work best.
Modified ATR Images
This is the approach used by the "Extended Menu" of "The!Cart". When you add an ATR file directly to a workbook, the file
is analyzed and all potential code locations that call the Atari OS SIO routines are identified. For disks that contain a
known DOS (DOS 2.0S, DOS 2.5, MyDOS) and its "DOS.SYS" file, only the sectors that belong to that file are patched by
default. For disks that contain the Bootmanager by Mike Langer, only the sectors or the Bootmanager are patched. For all
other disks, the complete disk is scanned for usages of the SIO and that may potentially result in some false positives
you have to removed manually from the parameters. The result of this analysis is stored in the "Parameters" column in the
form "base=$100, $123=SIOV, $456=DSKINV". This column is hidden by default and can be made visible via the context menu of
the table. When the workbook is exported for to the Atari, the calls at the found offsets are modified to point to the SIO
simulation which as located at the address specified with the "base=$...." parameter. The advantage of this approach is
that it works also on Atari 400 an Atari 800 machines that do not have RAM under the OS and for software that uses the RAM
under the OS like for example "Turbo Basic XL 1.5" or "The Brundles". And by specifying the corresponding parameters it
will work even for software that uses nonstandard SIO routines instead of the Atari OS SIO routines like for example
"MyPicoDOS". The disadvantage of this approach is that it will not work with program where the code that calls the SIO
vectors is packed or encrypted in the ATR. The following parameters are supported. Numbers are given in hexadecimal
notation and are just example values. In the appendix
you can find a list of known parameter combinations for programs that don't work with the default parameters.
This specified the base address for the SIO simulation code which is less than 256 bytes in size. The default base
address is $400. If the ATR crashes while loading, it might be the case that the program overwrites this memory area. For
example MyPicoDOS uses the memory location $400-$40f during loading. To solve this problem you can change the base
address to $410 for example. Other good choices for base addresses are $100, $400, $480,$500,$600 and $100. Just try
which one works for the specific program.
The two bytes starting at offset $123 are changed to the start address of emulation code for the SIOV vector ($e459).
The byte at offset $123 is changed to the low byte of start address of emulation code for the SIOV vector ($e459).
The byte at offset $123 is changed to the high byte of start address of emulation code for the SIOV vector ($e459).
The two bytes starting at offset $123 are changed to the start address of emulation code for the DSKINV vector ($e453).
The byte at offset $123 is changed to the low byte of start address of emulation code for the DSKINV vector ($e453).
The byte at offset $123 is changed to the high byte of start address of emulation code for the DSKINV vector ($e453).
The two bytes at offset $123 is changed to memory location which contains the item number of the selected menu entry.
This can be used to modify inner menus to skip the selection and start the selected entry automatically. The item numbers
are counted starting at zero. For example if you select the a menu entry which represents the 3rd item on a disk based
ATR, the values in the memory location will be "2".
If you messed up the parameters somehow, you can simply add the ATR file again to the workbook and choose to overwrite
the existing file in the workbook. In this case, the analysis is performed again and a default for the parameters is
The SIO simulation in this approach supports both the read ("R", $52) and the status ("S", $53) command for "D1:". The
status command set the 3 density bits of the "DVSTAT" status based on the density and size of the ATR. Using other disk
units than "D1:" results in the error code "130 - Nonexistent Device". Using commands than "R" and "S" results in the
error code "132 - Unknown command".
Modified Atari OS in RAM
This is the approach used by the Maxflash Menu or MegaCart Menu. The operating system is copied to the RAM under the OS
ROM and is then modified to load the "disk sectors" from the flash cartridge instead of the real disk. The advantage of
this approach is that it works equally for all software that uses the standard Atari OS SIO vectors, even if the SIO
relevant code on the ATR is packed on encrypted. The disadvantage is that the approach will not work on machines like the
Atari 400 or Atari 800 that do not have RAM under the OS like the Atari and not with programs that use the RAM under the
OS themselves. You can use the
to create 128 KB, 1 MB or 2 MB collections with ATR disk images. Both studios come with proven emulation and provide
several options to specify how the disk image shall be handled. You can then export the collection as BIN or CAR cartridge
image and add it to the workbook.
This is the Atari DOS composite file format of executable files that can be loaded from a DOS. Many disk based programs
that are available in this format can also be started from flash cartridges. To achieve this, typically a minimal DOS is
copied to the RAM. The DOS is modified to load the "file segment" from the flash cartridge instead of the real disk. Of
course this emulation has its limitations, for example for programs that use the RAM where the DOS or loader is located or
perform real DOS operations like reading the directory or writing to disk. Currently you cannot add these files directly to
a workbook. Instead you can use the
to create 128 KB, 1 MB or 2 MB collections with COM/EXE/XEX executables. Both studios come with proven emulation and
provides several options to specify how the executable shall be handled. You can then export the collection as BIN or CAR
cartridge image and add that to the workbook.
The title and content type of many popular ROMs is also stored in the cartridge database. If you ROM is found in the
database, the title and if known the content type are proposed. If no matching entry is found, the content type is set to
"Unknown" and you have to select the appropriate content type manually before exporting the cartridge in and form.
The cartridge database is based on the list maintained by Tomasz Krasuski (Kr0tki) at
. It currently contains over 700 known titles and almost 700 known content types. The exact number are shown on the about
dialog. You can support "The!Cart Studio" and improve the quality of the cartridge database by sending your own workbook file
without (!) the ROMs to
Via the column "Display Mode" you can select how the entry is represented in the extended menu. Possible values are:
The entry is represented as single entry in the extended menu. The entry title in the workbook is used as entry title in the
This value can only be selected if the file behind the entry contains an own inner menu that is supported by "The!Cart
Studio". The inner menu entries are extracted from the file during the export of the workbook. Only the titles of the inner
menu entry, but not the title of the workbook entry, will appear in the extended menu.
The following types and versions of inner menus are currently supported. For all of them, you can add the inner menu
entries to the extended menu by choosing "Multiple Entries". When you add an entry to the workbook, the "Display Mode" will
be set to "Multiple Entries" automatically by default. You can of course change the values if you don't want the inner menu
entries to show up separately. By default you will start the inner menu when you select one of its entries in the extended
menu. For some inner menus dedicated support has be implemented so selecting the inner menu entry even starts it directly.
Multiple entries is supported for a very large number of versions of
Atari Maxflash Studio
. Direct start is supported for the menus created witd the latest version of Maxflash Studio.
||MegaCart Studio Menu
Multiple entries is supported for all official versions of
. Direct start is supported for the menus created with the latest version of MegaCart Studio.
||Bootmanager by Mike Langer
Multiple entries is supported for the 1996 version of the program, which is the only known version. Direct start is not
supported. You can find the huge archive of disk images that use "Bootmanager" on the
HomeSoft web site
||MyPicoDOS Menu by Matthias Reichl (hias)
||Multiple entries is supported if there is a "PICONAME.TXT" configuration file on the disk. Direct start is not
The menu entry "Tools/Preview" allows for a testing preview of the complete cartridge export and its menu in an emulator.
For the preview, the workbook is exported as ".car" file with a fixed name into the temporary folder of the user. A
previously existing preview is overwritten automatically. If no path to an emulator executable is configured in the options,
"The!Cart Studio" tries to open the ."car" file with the associated default program of the operating system. If that fails,
it will ask you to maintain the full path to the emulator, for example to "Altirra.exe" or "atari800.exe", in the options.
||Supported Flash Types
|BIN Cartridge Image
||Single plain binary cartridge file without header information with exactly the size specified by the flash type. Can be
used directly to burn or flash the cartridge file to a physical cartridge with an arbitrary eprommer or flasher. You can
also run the cartridge file in an emulator like Atari800, Atari800Win or Altirra. The emulator will try to detect the
cartridge type from the ROM size and content. In case of doubt the emulator will prompt you for the correct cartridge type
every time you open they cartridge file. Therefore using the "CAR Cartridge Image" export instead in recommended in this
|CAR Cartridge Image
||Single extended binary cartridge file with header information. Can be used directly run the cartridge file in an
emulator like Atari800, Atari800Win or Altirra. The emulator will detect the cartridge type directly from the header, so
you don't have to select in when opening the cartridge file.
|ATR Programming Image for AspeQt
|| Single disk image in ATR format for use with AspeQt and the "The!Cart" flasher software on the Atari. The ATR file uses
large sectors to achieve the maximum transmission speed and to store up to about 512 MB of information (65534 sectors of 8k
size) in a single file. The file contains additional information to support incremental flashing to speed up flashing in
case only parts of the project have been changed. In addition the file only contains the used sectors. Therefore this
export format can also be used to program "The!Cart" cartridges of a size smaller than specified by the flash type, as long
as the size does not exceed the physical size of the cartridge.
|ATR Programming Images (16 MB)
Multiple disk image in ATR format for use with SIO2USB, SIO2SD, SIO2PC or
and the "The!Cart" flasher software on the Atari. The ATR files uses normal double density sectors to be compatible with
SIO2USB, SIO2SD and Atari DOS versions like MyDOS and SpartaDOS. The files contains additional information to support
incremental flashing to speed up flashing in case only parts of the project have been changed. In addition the files only
contain the used sectors. Therefore this export format can also be used to program "The!Cart" cartridges of a size smaller
than specified by the flash type, as long as the size does not exceed the physical size of the cartridge.
The export always also generates a ".txt" index file with the title and origin of all menu entries. This way you can use
the file system search of your operating system function to find games in exports. The index file also contains the
information the for example "Amaurote 128 (130 XE)" is one of the menu entry that stees from the "Multiple Entries" setting
for the workbook entry with the title "GAMES403" stored in "GAMES403.ATR"."
You can print the content of the workbook including the list of entries via the menu entry "File/Print" (CTRL-P). The columns
in the print output are the visible columns on the entries tab. Hence you can configure the columns you want to see as
described in the section
. For example you can make the column with the start bank visible, so you can use the simple menu to start entries and see
the banks which are assigned to user space entries.
- Plug "The!Cart" in and power up your Atari.
- Press "ESC" to leave the extended menu and enter the simple menu with the black text screen.
- Press "F" to select the built-in flasher and then "RETURN" to start it.
- The flasher will automatically detect of the attached storage device support high-speed SIO.
- Press "1" for "Program Cartridge".
If you use AspectQt and SIO2PC, insert the single large disk image created in the step
into the emulated drive "D1:" in AspeQt.
If you use SIO2USB, SIO2SD or your alternative storage device, insert the the first of the nine 16 MB disk images created in
into the emulated drive "D1:" in AspeQt. If your storage device supports emulating multiple drives, you can insert the disk
images 2..9 already in the subsequent virtual drives. This way you can leave the Atari along for a longer time during
- The flasher will prompt you with "drive number (1-15)"
- Press "1" and "RETURN" to start loading the data from disk.
- The flasher will load the header information and display the workbook title, date and number of used blocks. It will
display if the export consists of multiple 16 MB images. In that case you can choose to search for further 16 MB disk images
in all available drives.
- The flasher will prompt you with "perform incremental update (y/n)?"
- Press "y" to use incremental update.
- The flasher will prompt you with "start programming (y/n)?"
- Press "y" to start the actual flashing.
- The flasher will load the check sums, determine which differences exist between the current content of "The!Cart" and the
content of the exported workbook. Only blocks that are different are loaded and updated.
- When done with programming, the flasher will prompt you with "Press any key to continue"
- Press "S" to start the cartridge.
- The flasher will prompt you with "Start Cartridge: 'E' for expert menu (y/e/n)?"
- Press "y" to start enter the updated extended menu.
In case you the built-in flasher can no longer be started for some reason, you can download the disk version. The disk
version is available on
Atari flashing software
Pressing the RESET button on the "The!Cart" cartridge followed by pressing the RESET button on your Atari will take you to
the menu. If the cartridge contains the simple menu only, holding OPTION while pressing RESET on the Atari disables the
cartridge. If the cartridge contains the extended menu, holding OPTION while pressing RESET on the Atari starts the simple
menu. This allows for starting the flasher and update the extended menu in case it does not work properly.
You can use the joystick or the keyboard to control the extended menu. You can narrow list by selecting the tab of a genre.
The tab "All" always contains all entries. You can narrow down the list within a genre tab by typing any word or part of the
title of the entry you are looking for. The search will find the entry no matter if something is in lower case or upper case.
You can also use the joystick and the cursor keys to scroll though the result list. You can use the following controls:
- HELP - Display the help menu
- DELETE - Delete the last character from the search term.
- Joystick UP, cursor UP or "-" - Move the cursor line up.
- Joystick DOWN, cursor DOWN or "=" - Move the cursor line down.
- FIRE or RETURN - Start the selected entry. Lock the the cartridge configuration to prevent changes.
- RETURN+CONTROL - Start the selected entry. Don't lock the the cartridge configuration.
- FIRE+SHIFT or RETURN+SHIFT - Start the selected entry's cartridge menu, if there is one. Lock the the cartridge
configuration to prevent changes.
- RETURN+SHIFT+CONTROL - Start the selected entry's cartridge menu, if there is one. Don't lock the the cartridge
- Joystick LEFT, cursor LEFT - Select next genre to the left
- Joystick RIGHT, cursor RIGHT - Select next genre to the right
- TAB - Toggle the details display mode of the selected entry between readable and technical information
- ESC - Exit the extended menu and start the simple menu. From there the flash can be started also.
The most recent version of the CPLD logic for the "The!Cart" cartridge supports a configuration lock. The configuration lock
ensures no software can unintentionally or maliciously change the contents of the "The!Cart" cartridge. If you have an early
version of "The!Cart" cartridge, you can use a JTAG interface to
update the CPLD logic
. By default the configuration of "The!Cart" is locked when an entry is started. This means the configuration cannot be
changed via software anymore until you press RESET button on the "The!Cart" cartridge. By pressing the "CONTROL" key as
additional modifier when starting an entry, you can prevent the configuration lock. This can be useful when using software
that is built to access the "The!Cart" cartridge in native mode, for example RAM disk drivers.
A number of advanced features of "The!Cart Studio" that are not so interesting for the regular user are also available.
Displaying additional columns in the entries tab
By default only the most frequently used columns are visible on the entries tab. Using the context menu on the header row of
table , you can make more columns information about the entry visible.
Using fixed start banks
By default entries are assigned automatically to a suitable start bank and the user cannot change this assignment. For
developers who want to create software that uses "The!Cart" directly, for example in "Flexi-Mode" to directly access the 128
MB, it may be required to put certain content in certain banks. To do this, use the context menu to make the column "Start
Bank Fixed" visible". This column offers a check box and if the check box is active for an entry, the column "Start Bank"
becomes editable for this entry and the entry is excluded from automatic bank assignment.
Defining User Space
By default all banks of the flash cartridge are under control of "The!Cart Studio". But if you want, you can reserve a
portion of the flash cartridge for direct flashing from the Atari. This portion of the flash cartridge is called "User
Space". You can define the size of the user space in the workbook options. You can enter the size in bytes, kilo bytes or
mega bytes, e.g. "1023 B", "8 KB" or "2 MB". The effective size of the user space rounded to the next full bank, depending
on the bank size. In addition the size of user space automatically rounded to a multiple of the flash block size, i.e. to 64
KB for the flash target types "Atarimax 128 KB/ 1 MB" and "Flash MegaCart 4 MB" and to 128 KB for "The!Cart 128 MB". The use
space is always located in the last banks of the flash cartridge. This way the ATR programming images are shorter and the
flash software does not overwrite the banks that belong to the user space.
Though the content of the user space is fully under control of the Atari you can still define entries with "The!Cart Studio"
to start the content in the user space from the cartridge menu. Via the menu entry "Edit/Add User Space Entry" a new user
space entry is added to the list. This type of entries does not have an associated file in the project. Instead it is
mandatory to specify the content type and the start bank manually. Therefore these two columns become visible if a user
space entry is added.
Using a special version of the "The!Cart" Atari flashing software and standard menu
By default "The!Cart Studio" uses the Atari flashing software and standard menu that is included in the ".jar" file. In case
you want to use a more recent or modified version of the
"The!Cart" Atari flashing software and standard menu
instead of the version which is currently included in "The!Cart Studio", you can put the "cartmenu.rom" file in the same
folder as the "TheCartStudio.jar". Whether the built-in or the external software is used and which version it has is
displayed in the "About" dialog.
In case of problems, just post your question to the forums mentioned at the beginning of this document. Frequent mistakes
Use wrong flash module type and size in the workbook options
Make sure you set the flash module type and size to the actual type and size of your cartridge. This is esp. important if
you did not create the workbook yourself but download it from somewhere. Other people may have other hardware then you.
Use wrong menu in the workbook options
Make sure you set the flash module type to "Extended Menu" to get the Google-like search. This is esp. important if you did
not create the workbook yourself but download it from somewhere. Older workbooks use the "Simple Menu".
Use wrong flashing mode
Make sure you use "Program Cartridge" by default. Programming raw files or images is not required when using "The!Cart
Studio". Make sure you use incremental flashing by default if it is available to save time. Non-incremental/full flashing is
only required is nothing else helps.
For testing if your cartridge and the flasher work correctly, a number of test workbooks are available for
. In case the computer does not even start with the cartridge inserted, you can try holding down the "OPTION" key during
power-up to bypass the cartridge. The load the flasher program from disk instead and flash the cartridge again.
This is a list of patches for programs that don't work out of the box with newer or non-standard Operating Systems or with
the ATR loader of The!Cart. For them you can adapt the default parameters determined by "The!Cart" Studio. Just enter the
solution listed in the "Parameters" column of the respective workbook entry the to patch the files during the export. Since
the offsets specified here are specific for a given disk image, they may not work on other disk images.
|Amaurote 128 (130 XE)
||Uses the memory starting at $480 during loading, hence overwriting the ATR loader if it uses that area.
|Bounty Bob Str. Back!
||Uses the wrong PORTB value $8f when activating the OS ROM, causing extended RAM to become active in extended machines.
The data from the empty extended RAM is copied under the OS and when pressing RESET, the empty data is copied over the
actual program. Though the program seem to start correctly, it'll break later.
||base=$0400, $011d=siov, $122ed=$ff, $12318=$fe
||The crack intro uses the normally unused stack area starting at $114 and page 4 starting at $400. Therefore the base
address for the ATR loader must be place at a different address.
||base=$0600, $011d=siov, $016a01=$ae, $016a02=selected_item_number, $016a04=$4c, $016a05=$8b, $016a06=$09
||Uses and illegal entry point to OS-B, so it doesn't work on a standard Atari XL.
||base=$0400, $011d=siov, $1101a=$ea, $1101b=$ea, $1101c=$ea
The "Multiple Entries" feature is now more reliable for corrupted Atarimax menus and can handle menus with more than 70
entries correctly now. "Maxflash Studio only reserves about 2000 bytes for the title texts. Title texts are stored as
variable length strings. Typically the entry space on the cartridge runs out for the entry data, before the title space
runs out for the titles. But due to a missing warning in Maxflash studio, the title space can overwrite the entry space if
many long titles are used. The!Cart studio now tries to detect that situation and stops at the last correct entry. See
Maxflash Studio Menu corrupted when using >70 entries
- Typing in the extended menu now creates a regular key click via GTIA.
- A bug during the search that was introduced in the previous version is fixed again.
2015-08-07 - Fujiama 2015 Edition
- "TheCartStudio.app" for Mac OS X users now works correctly and allows to start the application directly from the
New modifier key "CONTROL" is evaluated when starting an entry to disable the default configuration lock. This can be
useful when using software that is built to access the "The!Cart" cartridge in native mode, for example RAM disk drivers.
added to the documentation. It also contains a download link to an archive including test workbooks for different sizes of
cartridges and all supported cartridge types. for details.
Description the flashing process for "The!Cart" added to section
Programming Flash Cartridges
of the documentation.
- The download now contains a "TheCartStudio.exe" for Windows users. This wrapper program comes with a proper icons, a
version and location test for the Java Runtime and the required Java parameters to ensure enough heap memory is available.
- The download now also contains a "TheCartStudio.sh" for Linux users. This script provides Java with the required
parameters to ensure enough heap memory is available.
- The download now also contains a "TheCartStudio.app" for Mac OS X users. This one is still very experimental and is not
yet tested as I don't own a Mac OS X machine. But I wanted to get this version out now.
- Online help has been revised. New sections and diagrams in now explain the overall workflow and creating and flashing
workbooks. Also the different options to add files directly or via Maxflash Studio and MegaCart Studio are now explained.
- The selected line in the extended menu now uses black text and a more constant and darker flashing. This reduces
bending and artifacts on CRT TV.
- Player missile graphics of the extended menu are now disabled correctly before an entry is started. That was an issue
for example with Flop Magazine 56 Intro.
- An exception that occurred with ATR files that do neither have a boot manager menu nor are DOS 2.5 disks is fixed.
- New Atari software version 2014-04-07 included. It includes a fix for the CAR or MyPicoDOS when loading OSS modules.
- The "-createSampleFiles" command now correctly creates separate folders "ROM-Correct", "ROM-Size-Too-Small",
- Console output for error messages is now routed to "System.err", so the command line can properly distinguish between
information and error messages.
- The last entry on from "Bootmanager" disks is now visible in the extended menu. Thanks to Frank for pointing out the
- New cartridge type "67 - XEGS 64 KB cartridge (banks 8-15)" added to list of recognized cartridge and content types for
- Bootable ATRs without DOS 2.x or MYDOS are now correctly recognized again. They had worked before and became broken
with the support for the "Bootmanager" ATRs.
- The new menu entry "Tools/Preview" allows for a testing preview of the complete cartridge export and its menu in an
emulator, just as in the Maxflash Studio. For the preview, the workbook is exported as ".car" file with a fixed name into
the temporary folder of the user. A previously existing preview is overwritten automatically. If no path to an emulator
executable,is configured in the options, "The!Cart Studio" tries to open the ."car" file with the associated default
program of the operating system. Only if that fails, it will ask you to maintain the full path to the emulator, for example
to "Altirra.exe" or "atari800.exe", in the options.
- The modifier key for menu entries should now be "Command" instead of "Control" on Mac OS X.
- The buttons for choosing the bank colors are now also correctly displayed on Windows XP.
- The "Check for Updates during Start" setting in the options is now saved correctly when the program is closed.
- The export now also generates a ".txt" index file with the title and origin of all menu entries. So you can use the
file system search of your operating system function to find games in exports. The index file also contains the information
the for example "Amaurote 128 (130 XE)" is one of the menu entry that stems from the "Multiple Entries" setting for the
workbook entry with the title "GAMES403" stored in "GAMES403.ATR"."
- The resident part of the SIO simulation that must be present after booting has been reduced from 231 to 148 bytes. This
makes is possible to use the stack area with "base=$100" also. Since that part of the stack will be unused most cases, it
has become the new default base address. Yet there may be programs that use that area for example during unpacking, so
you'll have to try other values in case it doesn't work there.
- The ATR analysis now patches DOS disks correctly also in case the "DOS.SYS" is not stored starting at sectors 4 but on
other parts of the disk. Example: "Asteroids.atr" by Norbert Kehrer
In the new appendix
you can find a list of known parameter combinations for programs that don't work with the default parameters. This includes
fixes for OS-B only games (Popeye) or file versions with plain bugs (Bounty Bob).
- Pressing RETURN to start the selected entry now correctly starts the entry even if the search is still active. Before
RETURN was interpreted as ESC in this case and the simple menu was started.
- Menu entries from double density "Bootmanager" disks with more than 9 entries (i.e. more than 1 directory sector) now
appear correctly in the extended menu. Example: "GAMES009.ATR".
- The documentation has been extended with the description on starting Java with enough memory to export large workbook.
The about dialog now displays the amount of memory that is available in Java. Errors that occur during the export due to
insufficient memory are no caught and displayed in the status bar. This was a problem on Mac OS X 10.9 where the default
heap size for Java is 128 MB on some machines.
- The new parameter "$123=SELECTEDITEMNUMBER" can be used to patch menu code of ATR images to directly load the correct
menu item. For "Bootmanager" disks, this is done automatically already now. So you can start all of them from the extended
menu without bothering with the actual "Bootmanager" menu.
- "The!Cart Studio" now automatically checks if a newer version is available on the web site during startup. If a newer
version is available, a dialog box is displayed and the download can be triggered directly by pressing "Yes". For those who
have a slow internet connection or simply don't like automatic updates, the check can be disabled in the options. You can
then use the "About" dialog to display the local and the version available on the web site.
- The analysis of the ATR with respect to SIO patching has been improved. For disks that contain a known DOS (DOS 2.0S,
DOS 2.5, MyDOS) and its "DOS.SYS" file, only the sectors that belong to that file are patched by default. For disks that
contain the Bootmanager by Mike Langer, only the sectors or the Bootmanager are patched. For all other disks, the complete
disk is scanned for usages of the SIO and that may potentially result in some false positives you have to removed manually
from the parameters. If you added ATR files to a workbook before and did not manually modify the parameters, you should add
those files again. This will set the parameter to the new default, reducing the risk of wrong patches.
- Patches specified in the "Parameters" column for ATR files can now also be used for direct patching and pokes. You can
specify a patch or poke as "$1234=$56" to set the byte at offset "$1234" in the disk image content to "$56" during the
export. For example to make "Popeye" work on OS-C/XL machines you can specify "base=$0400, $011d=siov, $1101a=$ea,
$1101b=$ea, $1101c=$ea" as parameters for the "GAME009.ATR" from HomeSoft.
- The ATR loader now correctly clears the RAM before the boot process. Before the RAM was unintentionally filled with a
pattern. This resulted in graphics garbage in some programs that do not initialize the RAM themselves like Master of the
A detailed description of all columns on the "Entries" tab and a description of the "Multiple Entries" setting for the
"Display mode" have been added to the
"Multiple Entries" is now also supported for two disk based menus. Disks that contain the "Bootmanager" by Mike Langer or
"MyPicoDOS" by Matthias Reichl are now supported. The long file names maintained in these menus will be listed in the
extended menu and can be used for searching. You can find the huge archive of disk images that use "Bootmanager" on the
HomeSoft web site
. As a test all currently present 405 disk images with 2477 games have been added successfully and appeared correctly in
the extended menu.
- Memory organization of the extended menu optimized. It now also works correctly on an Atari 400 with only 16k of RAM.
Isn't that cool with 128 MB of ROM? The result list is now automatically limited based on the available RAM in the Atari.
On a 16k Atari there is space for 512 entries in the result. On a 48k Atari there is space for 12.800 entries in the
- Link to hias' web site fixed in documentation.
- Extended menu now also works with "The!Cart" cartridges with 32 MB and 64 MB.
- Download link and download version number are correct again now in the about dialog.
- Content type for CAR files of type "The!Cart 64MB" is not detected correctly.
- ATR simulation now also works on NTSC machines and some images that ended in a lock-up on PAL will also work now.
- ATR loading speed has been increased again by 50% for the cases where the destination address is not overlapping with
the ROM area.
- Sorting tables by multiple columns is now supported. Clicking on column header with SHIFT or CONTROL held down extends
the sort order by appending this column. This way you can now sort by genre first and then by title for example. Clicking a
column header without pressing SHIFT or CONTROL resets the sort order to that single column.
- RAM is now cleared before starting inner entries from Atarimax or MegaCart compilations. This will fix artifacts in
programs that rely on this, for example Spy's Demise.
- ATR loader now correctly sets "DSTATS=1", making it more compatible with some disks.
- First version of filtering via genres is now working in the extended menu. Use joystick or cursor left and right to
step through the genres. Visualization of the selected genre is not yet how I want it to be, but it works.
- HELP key now displays a built-in help menu that explains all controls.
- Initialization error in direct start for MegaCart's inner menu entries fixed (DLI vectors, BASIC not off after warm
- Some cartridges like for example Asteroids have the property that pressing the RESET button on "The!Cart" sometimes
brings you to the extended menu by incident. This the case simply because they use the same memory area and pressing the
button swaps the code. This can lead to garbage on the screen and a non working menu. Now the menu detects that the RESET
button of "The!Cart" is still pressed during initialization (which is normally not the case). It then performs a cold start
to ensure proper initialization, once the button is released.
- Keyboard definitions are now included directly in the extended menu, so it works correctly if an with "OldRunner" OS is
- TAB - Toggle the details display of the selected entry between readable and technical information.
- Display type "Multiple Entries" is now also supported one additional older version of the Maxflash Studio menu. For the
very first version, this also includes the direct start. Looks like there were as many releases of that software as for
"The!Cart Studio" ....
- Direct start of MegaCart's inner menu entries from the extended menu is supported for the latest version of the
MegaCart Studio menu. Thanks to Bernd for his support to make this possible so quickly.
- By holding down "SHIFT" when starting an entry that comes from an inner menu disables the immediate start and takes you
to the inner menu instead.
- New Atari software version 2014-02-24 included. It includes fixes for the handling of the SPI EEPROM which stores the
configuration of the simple menu.
- Display type "Multiple Entries" is now also supported seven additional older versions of the Maxflash Studio menu.
Those were the ones with "<A>,<B>,<C>" lists. So you can see and search the entries from the contained
menu directly in the extended menu.
- Direct start of Atarimax's inner menu entries from the extended menu is supported for the latest version of the
Maxflash Studio menu.
- First - very experimental - support for ATR loading based on binary translation. Only non-encrypted single/enhanced
density disks may work. This ATR loader supports loading of programs that use the RAM under the OS. For all other ATR
stuff, you are currently better off with putting it into an Maxflash image or MegaCart Studio image.
- Sort order in the extended menu is now case insensitive.
- New Atari software version 2014-02-17 included with improved high speed handling.
- Timing bugs fixed that could cause the menu or cart to freeze during boot or ROM start, for example Asteroids.
- Display type "Multiple Entries" is now also supported for the content types "MegaCart 512 K" and "MegaCart 2 MB" and
for two older versions of the Maxflash Studio menu. So you can see and search the entries from the contained menu directly
in the extended menu.
- Entries are now automatically sorted by title when you save a workbook, so the are sorted by default when you open the
workbook the next time. Clicking on the column header of course changes the display sorting just like before.
- The recurring lockup with a black screen that was introduced in the last version should be solved now. After 28 years
of Atari programming I found out that display list interrupts are triggered, even if the display list DMA and the screen is
switched off. This again caused the VBI to not update the shadow registers to switch the DMA on because it assumed that is
the VBI interrupts an interrupt, then this is probably the serial I/O. But this time it wasn't. Fortunately I have my Turbo
Freezer and so I could find what is different on the real machine - because the issue never occurs in the emulator. Phew.
- Search speed improved from 25s to 9s for a full search in 16.000 entries with short names. When the search is finished,
the elapsed time in frames is displayed.
- Scroll speed and acceleration adapted.
- Cursor keys now control the scrolling also without pressing pressed "CONTROL". This also means these characters are no
longer available for typing in, which should not be a problem.
- Clearing of result lines when restricting the result now works properly.
- For Atarimax 128K/1 MB cartridges created with the recent Maxflash Studio, the display type "Multiple Entries" is now
supported. The entries of the Atarimax menu will also appear in the extended menu search. Selecting such an entry starts
the Atarimax menu it comes from. Direct start support will be added later. Due to a potential bug in the Maxflash Studio,
only the first 70 entries of the Atarimax menu are accepted to be on the safe side.
- New flash target types "The!Cart 32 MB" and "The!Cart 64 MB" added in the workbook options, because these sizes are
requested and actually shipped now.
- New cartridge types "65 - The!Cart 32 MB" and "66 - The!Cart 64 MB" added as they are because these sizes are requested
and actually shipped now and also supported by Atari800.
- Definition of initial banks fixed. Now all cartridge types use initial bank 0 (again) except for CARTRIDGE_OSS_034M_16
(bank 1), CARTRIDGE_ATMAX_1024 (bank 127) and CARTRIDGE_MEGA_4096 (bank 254).
- New Atari software version 2014-02-09 included. This fixes the problem that SDX64, Express and Diamond cartridges were
not started correctly due to a wrong initial bank register (was 7, must be 0). It also adds a new option to the flasher
when starting the cartridge. You can now choose to enter the default (extended menu) or if you want to explicitly enter the
simple menu directly. When entering the simple menu this way, the auto-start feature is disabled, so you don't start with
the wrong bank after flashing new content.
- Command line option to generate sample cartridge files now generates correct files also for "Megacart 2MB" and all
Atari 5200 cartridge types..
- First version of Google like search and scrolling in the result list of the "Extended Menu" is now implemented. Some
bugs still in there like cleaning the screen lines that are not part of the result, but for sure worth trying.
- The workbook options now allow all types of menus if the flash module type is "user defined". The "Simple Menu" and
"Extended Menu" will of course only work if the actual cartridge later is a "The!Cart" cartridge.
- Title and genre column were not editable in the version from 2014-01-15 because introducing the new data type for
sorting disabled the default editor. This is fixed again now.
New Atari Software version 2014-01-15 included.
- Fixed several flasher issues:
- - only ask for a disk when data will actually be read from it
- - added retry option on I/O errors
- - don't print empty bank numbers
- - in non-incremental mode program checksum block after data has been programmed (like in incremental mode)
- Display software version in "The!Cart" simple menu
- Check SHIFT key (to keep main config registers enabled) when disabling "The!Cart" with ESC from the simple menu and
when OPTION is pressed during boot
- Cartridge database was broken after refactoring and is now working again.
- First version of output for entry number, "The!Cart" flash module type, start bank number and boot bank number in the
status bar of the extended menu.
- Columns with ATASCII strings (titles, genres) are now sorted with binary order and not with locale dependent collation.
This means "Atarimax 1 MB" now appears before "Atarimax 128 KB" both in the studio and in the menu.
- New flash target type "Turbo Freezer 2005 448 KB" added which can be used to create ".BIN" files with 56 banks and 8k,
16k, OSS and SDX bank switching.
- Flash target type "User Defined" now allows all content types, so you can create arbitrary image files with it.
- First version of "Extended Menu" implemented. Displays the first 20 entries of the menu are displayed. You can use the
cursor keys plus return or the joystick in port 1 with the fire button to select. Press ESC to enter the simple menu.
- Cartridge type for "64 - MegaCart 2 MB" fixed, it was 63 instead of 64 so ".CAR" file were not recognized correctly.
- Mapping to "The!Cart" mode $22 fixed for cartridge type "61 - MegaMax 2 MB".
- New cartridge type "64 - MegaCart 2 MB" and mapping to "The!Cart" mode $2F added.
- About dialog now displays if a newer version of "The!Cart Studio" is available on the web site.
- Genre column now has a sorted drop-down selection for the genres as defined in the workbook options.
- Coloring of bank fixed for entries which span multiple rows.
- Text and help of the menu entry for "Export as ATR" changed into "Export as ATR for AspeQt" to be more explicit about
the different export types of ATRs.
- Action "Cancel" now keeps the program open when closing the program via the close button.
- Changes to the "Genre" column are now detected correctly when trying to close the program with unsaved changes.
- New file selection dialog which is as close as possible to the native file selection dialog of the underlying operating
system now. This enables proper browsing, context menus and more.
- New algorithm to layout the blocks for the banks on the banks tab. The size and position of the blocks now adapts
better the use the available size of the window. Now 16.384 can be seen properly also in 1024x768 resolution.
- New color schema for banks including separate color for user space.
All relevant Atari characters are now allowed in titles:
- Titles, for example when derived from the file name, are now automatically truncated to the allowed 40 characters.
- Banks assignment problem when using the "Overwrite" option for equally named files fixed. It could cause overlapping
bank assignments and corrupted bank display.
- Error message in case of .CAR file with incorrect content size fixed.
- Import of "ATR Programming Images" for "Atarimax 1 MB" and "Atarimax 128 KB" extended. It can now recognize 9 different
versions of the Maxflash software (2003-11-03,2003-05-29, 2004-08-25, 2005-04-09, 2009-08-15, 2011-10-03, 2012-04-07) with
two different extraction algorithms. It was tested against 99 different "ATR Programming Images" and successfully created
working "CAR Images" for them.
- New cartridge types "CARTRIDGE_MEGAMAX_2048=MegaMax 2 MB" and "CARTRIDGE_MEGA_4096=Flash MegaCart 4 MB" added to the
recognized content types in accordance with the new Atari800 definition. Please note that this is just for completes of the
Studio. Only the MegaMax 2 MB can be emualted by the "The!Cart" itself.
- New flash module type "Flash MegaCart 4 MB" added to the "Flash Module" presets in the workbook options. Please note
that this is just a preset and no flasher is included.
- New field "Cartridge Type" in the workbook options which allows explicit specification of the cartridge type for user
defined flash module types. This cartridge type is used when the workbook is exported as "CAR" cartridge image.
- The size of user space is now automatically rounded to a multiple of the flash block size, i.e to 64 KB for the flash
target types "Atarimax 128 KB/ 1 MB" and "Flash MegaCart 4 MB" and to 128 KB for "The!Cart 128 MB".
- The external software in "cartmenu.rom" is now also found if the folder path contains spaces or other special
- Import of "ATR Programming Images" for "Atarimax 1 MB" and "Atarimax 128 KB" fixed, so it also works with cartridges
that are not full, i.e. where the ATR is smaller.
- 1 MB Atarimax cartridge images are now correctly defaulted to content type "Atarimax 1 MB" instead of "Atarimax 128 KB.
- Section "Printing Workbooks" added to online help.
- Existing collections for 128 KB or 1 MB Maxflash cartridges are often only available as "ATR Programming Image" but not
as "CAR" cartridge images. Therefore a conversion for Maxflash Studio ATR programming images to "CAR" cartridge images has
been added. This way you can even test the collection directly in an emulator.
- Description of supported file formats (CAR/BIN/CAR/ATR/EXE) and their usage added to the online help.
- The window state "normal/maximized" is now also saved and the default window position and size are those that the user
has set before maximizing/minimizing the main window.
- The program now also starts and works correctly if the folder path of "TheCartStudio.jar" contains a folder with a name
that ends with an exclamation mark "!".
- Cartridge database cleaned up. Additional characters like "+-*/=?" are now allowed in titles. Title suggestions with
more than 40 characters from the cartridge database are automatically shortened.
- New Atari Software version 2013-11-30 included. External software is now also found if the name of the "TheCart.jar"
was changed manually.
- Default bank for user space entries is now the first bank of the user space.
- Table of contents with links added to help.
- Help content is now displayed with correct small font.
- New menu entry "Edit/Add User Space Entry" added to defined cartridge menu entries also for those parts of the flash
cartridge that are in the user space. The user space is the part of the flash cartridge that is not touched by "The!Cart
Studio" but is flashed directly from the Atari. The size of the user space can be specified in the workbook options.
- New Atari Software version 2013-11-03 included. This version supports delayed autorun for the last used ROM. In
additional a newer version of "cartmenu.rom" can be placed manually into the folder where "TheCartStudio.jar" is located.
It will be loaded automatically then. Whether the built-in or the external software is used and which version it has is
displayed in the "About" dialog.
- New menu entry "Tools/Options" allows selection of the display language of "The!Cart Studio". Possible values are
"Automatic", "English", "German".
